OptiBalancer

OptiBalancer is the traffic-shaping engine. While OptiScaler decides where Pods live, OptiBalancer decides what fraction of the requests each Pod receives.

It does this by patching Istio DestinationRule resources with per-locality weights that reflect real-time conditions - not the snapshot from when the Deployment was first created.

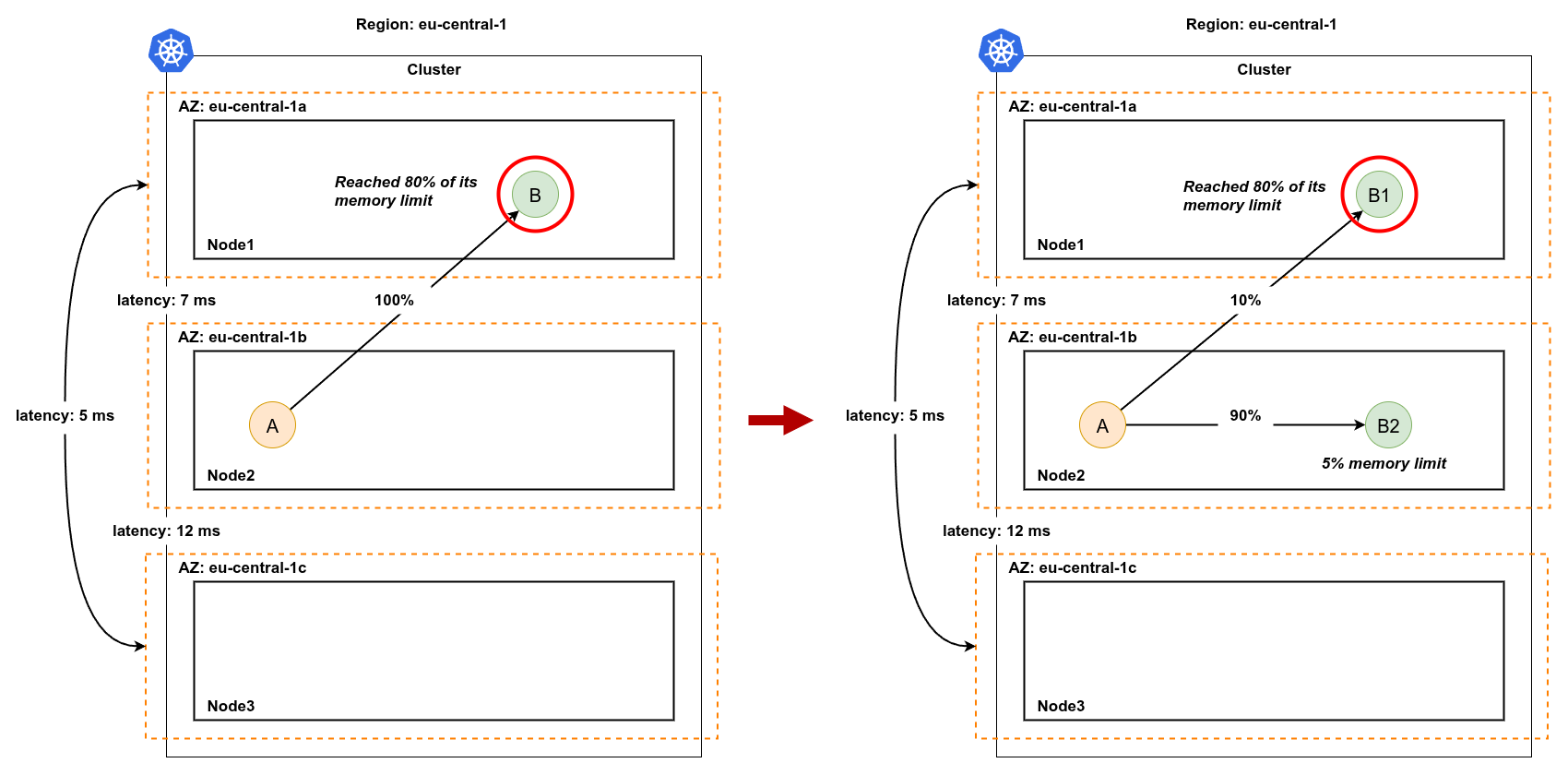

OptiBalancer reserves the least-loaded path

What problem it solves​

Out of the box, Istio (and kube-proxy itself) load-balances requests uniformly across endpoints. That assumption breaks the moment two replicas of the same service experience different conditions:

  • One is on a node that is currently CPU-saturated.
  • One is in a different zone - every request to it pays cross-AZ latency.
  • One was just created - it has fewer warm connections than its siblings.
  • One is failing slowly - its P95 is climbing but it has not yet been ejected.

Uniform load-balancing punishes the application for situations the application did not create. OptiBalancer continuously detects these asymmetries and shifts traffic gradually toward the replicas that are actually serving requests well.

The three cases it handles​

Case 1 - even, healthy, same-zone replicas​

Case 1: even split

When all replicas of a downstream service live in the same zone and report similar latency and load, OptiBalancer keeps the split even. No write is issued - there is nothing to improve.

Case 2 - replicas spread across zones, all healthy​

Case 2: locality-preferred

When healthy replicas are spread across zones, OptiBalancer preserves locality: callers prefer in-zone replicas, but a small reserve weight is kept on cross-zone replicas so that a zone failure shifts traffic smoothly instead of cliff-falling.

Case 3 - a replica is degraded​

Case 3: avoid degraded replica

When one replica's P95 latency or CPU is significantly worse than its siblings, OptiBalancer gradually reduces its share - it does not yank traffic away in one step. The replica is given a chance to recover; only if it stays degraded does its weight keep falling.

The same engine handles the node overloaded scenario:

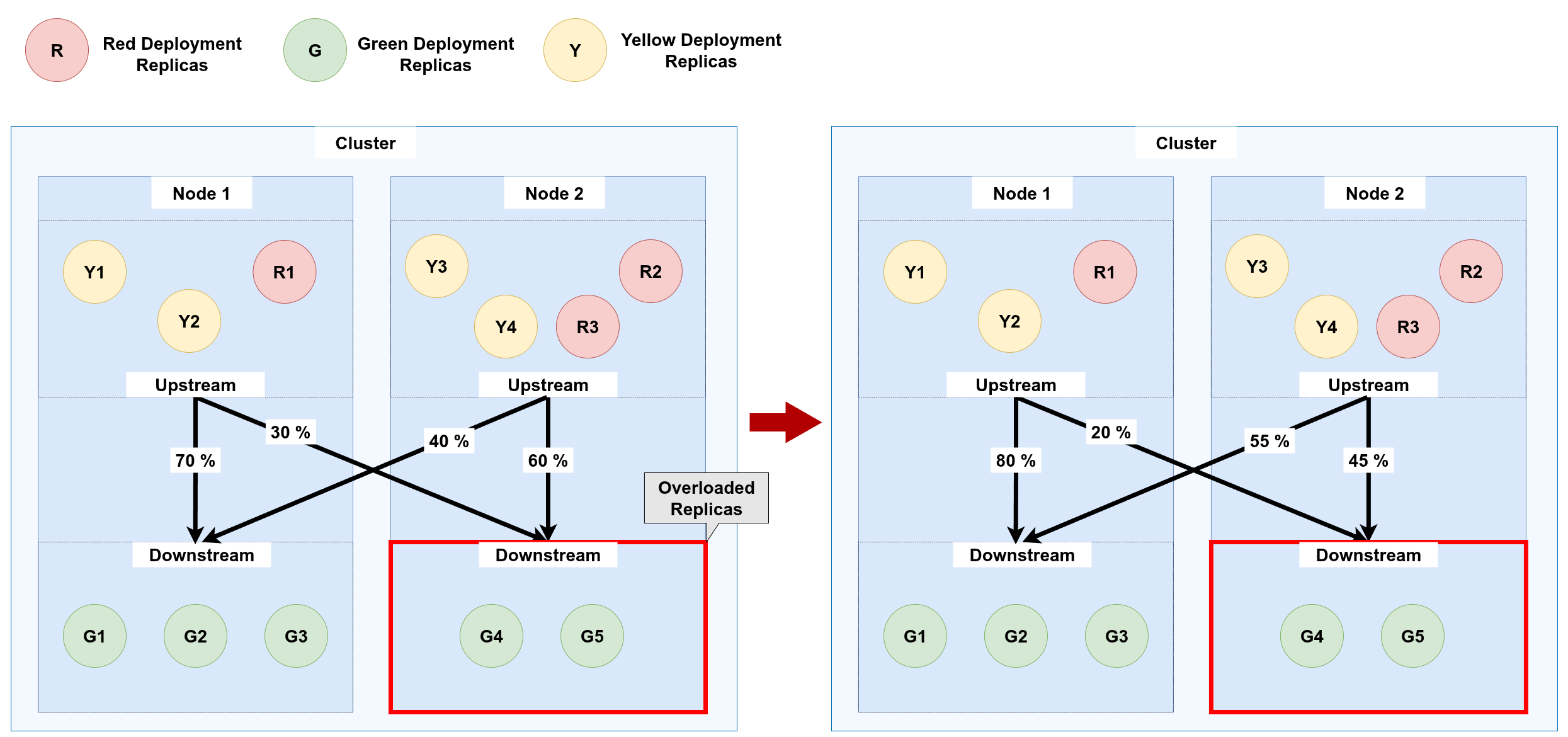

Node overloaded scenario

Why "gradual" matters​

A traffic balancer that jumps to the new ideal split in one cycle will oscillate:

  1. Replica A is slow → drop its weight from 50 % to 5 %.
  2. Replica A is now idle → its metrics look great → push it back to 50 %.
  3. Replica A is overwhelmed again → drop to 5 %.

OptiBalancer uses adaptive damping to prevent this:

  • If the imbalance is small, it applies a small correction.
  • If the imbalance is severe, it applies a larger correction - but still bounded by a configurable ceiling.
  • If the change to a DestinationRule would be below a minimum threshold, it does not write at all (saves Istio API churn).
  • If a per-route difference is below epsilon, that route is considered converged and left alone.

You can think of OptiBalancer as a PID-style controller for traffic - fast enough to react to real load shifts, slow enough to never oscillate.

Where it writes​

OptiBalancer's only side-effect is patching the spec.trafficPolicy.loadBalancer.localityLbSetting.distribute field (and the per-subset weights) of Istio DestinationRule resources.

It never:

  • Creates new DestinationRules (you author those; it tunes them).
  • Modifies your VirtualService routing rules.
  • Touches EnvoyFilter or any low-level Envoy config.
  • Changes anything outside the namespaces it is configured to monitor.

If you uninstall StornX, your DestinationRules stay exactly as they were on the last write - no cleanup, no regression. If you want to revert to uniform balancing, simply remove the weights yourself (or roll back the Helm release of your app).

How it cooperates with OptiScaler​

The handshake is intentionally minimal - a single marker file inside the StornX Pod. There is no message queue, no etcd entry, no shared state to corrupt.

Observability​

Every OptiBalancer cycle logs:

  • The current weight distribution per DestinationRule.
  • The proposed weight distribution and the L1 delta to current.
  • Whether the write was applied or skipped (with the gate that suppressed it).
  • Per-route convergence status.

Combined with Istio's own metrics (request rates per locality), this gives you a complete audit trail of every routing decision.

When OptiBalancer is disabled​

OptiBalancer activates only when Istio is detected. In an Istio-less cluster, OptiScaler continues to do its job (placement + autoscaling), and OptiBalancer logs a single startup line:

INFO  optibalancer  disabled  reason=istio-not-detected

Continue with Integrations to see how StornX cooperates with Istio, Prometheus, and Kube-NetLag in detail.
