OptiScaler

OptiScaler is the placement and autoscaling engine. It answers two questions every cycle, for every monitored Deployment:

1. Does this Deployment need more or fewer replicas?
2. If we add one, on which node should it run?

It does this while honouring three non-negotiable constraints: fault tolerance, cooldown, and deference to existing HPAs and PDBs.

What problem it solves

The default Kubernetes scheduler decides placement at Pod creation time based on resource fit, taints, and affinity. It has no idea which Pods communicate with each other and no way to react when traffic shifts.

OptiScaler closes that gap. It picks the node for a new replica based on where its actual neighbours already live, and it picks the replica to remove based on which node is doing the least useful work.

The placement policy in one sentence

Spread until you are safe, then co-locate to be fast.

This is the two-phase trade-off introduced in Core Concepts. Once the configured minimum number of zones is covered, OptiScaler starts using the service communication graph to pull new replicas toward their busiest neighbours.

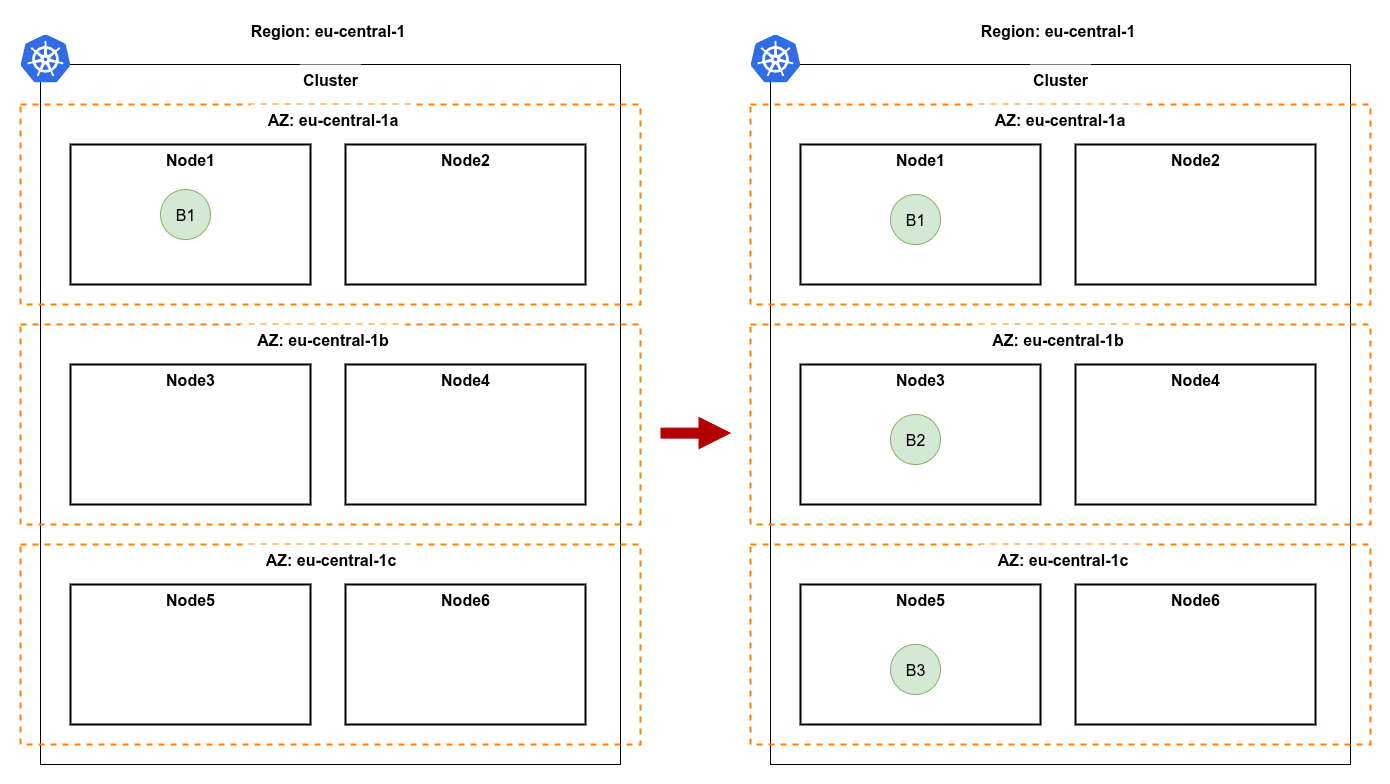

Phase A - fault-tolerance spread

When a Deployment has fewer replicas than the minimum zone count, the next replica is placed in a fresh zone with sufficient capacity. The goal is pure resilience: a single AZ failure must never take the application down.

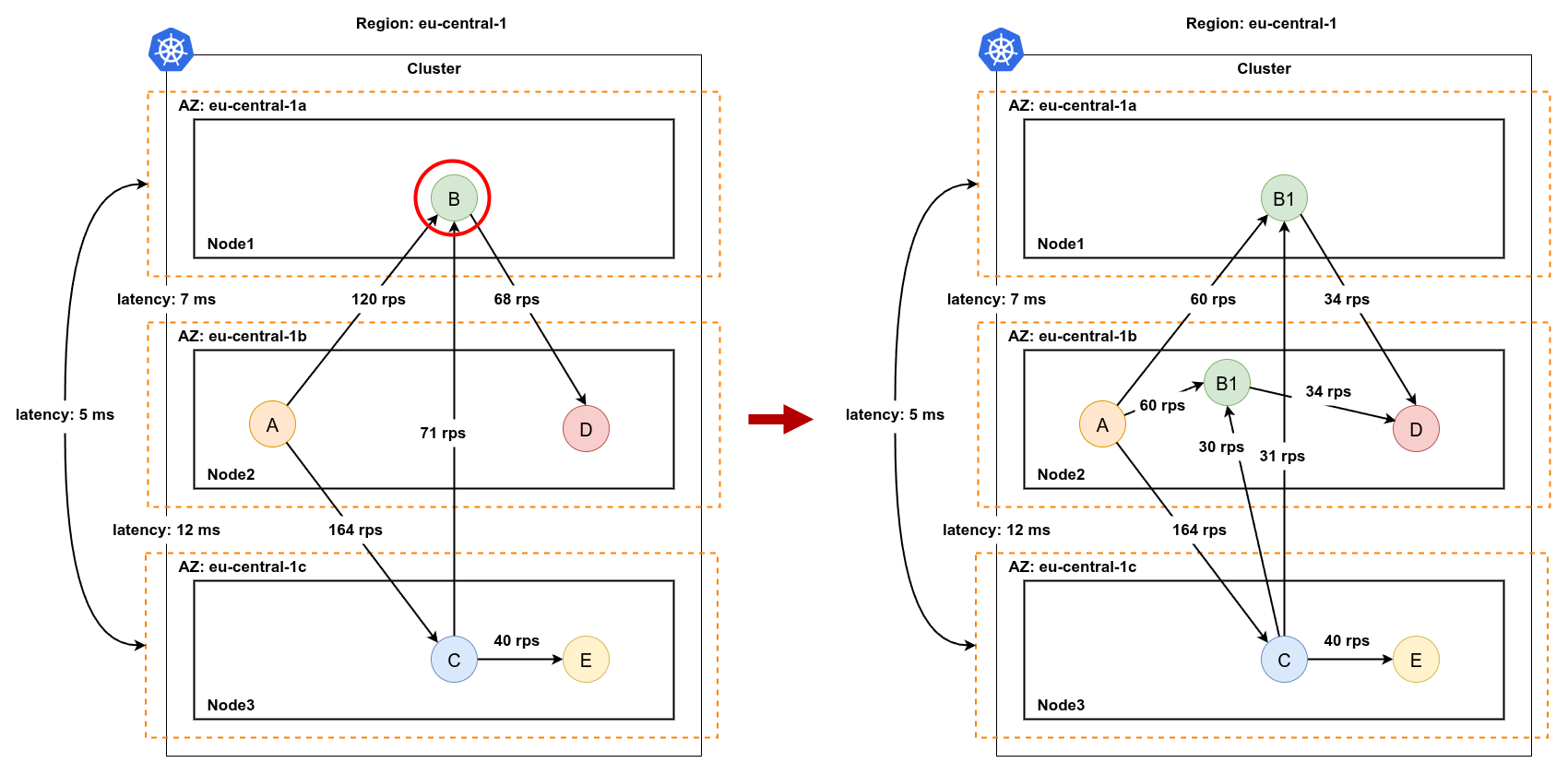

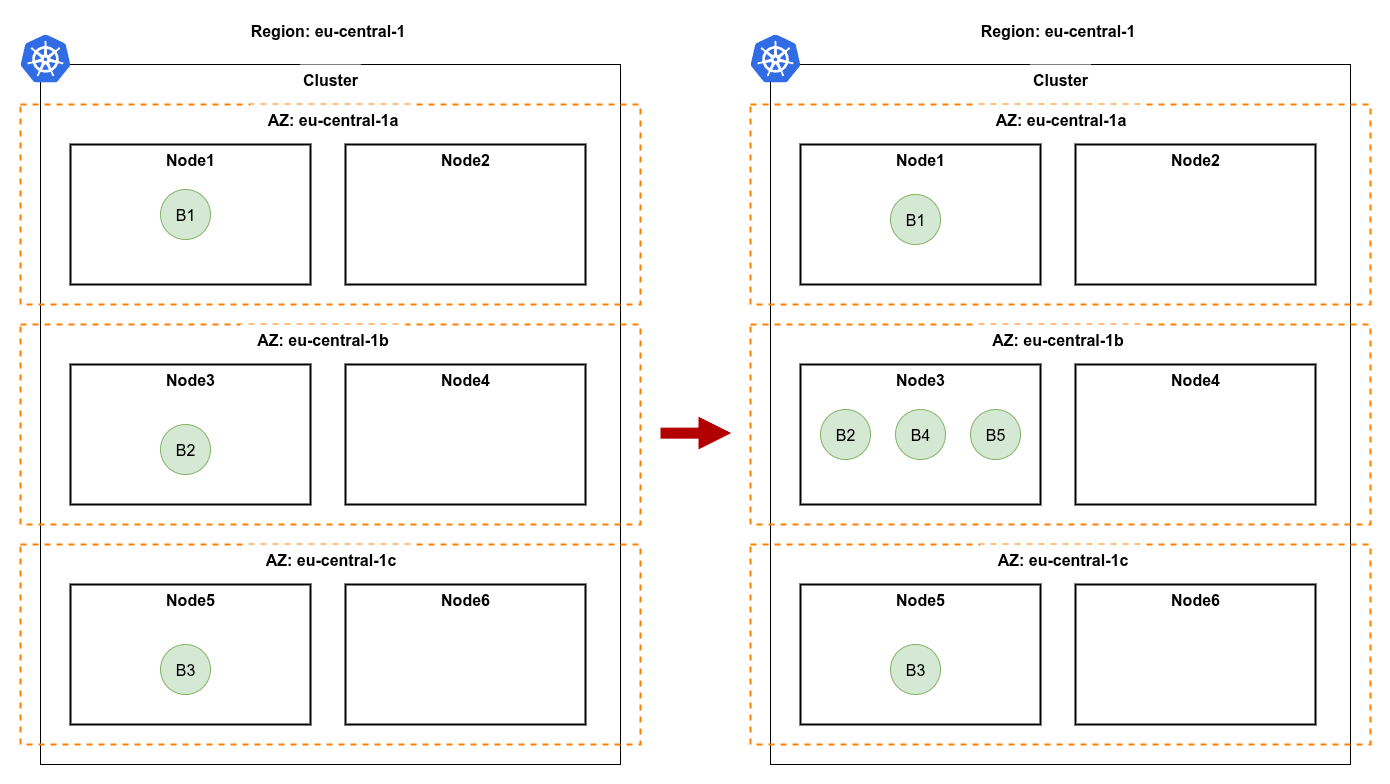

Phase B - communication-aware co-location

Once fault tolerance is satisfied, additional replicas land closest to their heaviest neighbour. "Heaviest" is defined by Istio request volume, not heuristics - if upstream traffic dominates, the new replica goes near the upstream; otherwise it goes near the downstream.

Scale-up logic, end-to-end

A few things to notice:

• HPA wins. If an HPA already targets the Deployment, OptiScaler does not scale. It still influences placement of any Pods it creates itself, and OptiBalancer still routes traffic - but the replica count is owned by the HPA.
• The graph is optional. When no Istio metrics are available yet (new service, no traffic), the engine falls back to a Least-Frequently-Used node score so it never makes a "blind" decision.
• Every decision is logged. Every chosen node, every fallback, every skip has a structured log line with the reason - there are no silent black-box decisions.

Scale-down logic

Scale-down is more conservative than scale-up. Removing the wrong Pod can violate a PDB, evict an important leader, or destabilise the service graph.

The policy:

1. Find the zone with the most replicas of this Deployment (i.e. the one that can afford to lose one).
2. Inside that zone, pick the most loaded node (so the load it sheds is the most useful).
3. Pick any replica of the Deployment on that node and remove it.
4. Before removal, run a PDB check: if removing this Pod would violate minAvailable, skip and try again next cycle.

How node selection works (without the math)

OptiScaler exposes three node-selection strategies and picks the right one automatically:

Strategy	When it kicks in	Intuition
Upstream (Um)	The deployment has measurable inbound traffic	Put the replica next to whoever sends it the most requests
Downstream (Dm)	The deployment has measurable outbound traffic to dependencies	Put the replica next to its busiest downstream dependency
LFU fallback	No service graph data yet (cold start, low traffic)	Pick the node with the most spare CPU and memory

The combined score blends CPU, memory, and (optionally) bandwidth weights - all tunable from the Helm chart. You do not need to understand the formula to use StornX; the defaults converge fine for typical microservice workloads. The Tuning guide explains when to deviate from them.

What you observe

When OptiScaler acts, you see log lines like:

INFO  scale-up    deployment=cart   reason=memory>80%   zone=eu-central-1b   node=ip-10-0-2-15   strategy=upstream-Um
INFO  scale-down  deployment=cart   reason=memory<20%   zone=eu-central-1a   node=ip-10-0-1-7    pdb-ok=true
INFO  skip        deployment=cart   reason=cooldown     remaining=42s
INFO  skip        deployment=cart   reason=hpa-managed

Every action is traceable, every skip is explained.

What changes for your apps

Nothing. Your Deployment manifests, your Service definitions, your HPA resources, your PodDisruptionBudget policies - all of them remain untouched. OptiScaler observes them and either honours their decisions or fills the gaps they leave.

Next: OptiBalancer - how traffic gets distributed once the layout is right.
