Core Concepts

Before diving into the architecture, this page defines the vocabulary StornX uses. Each concept maps directly to a Kubernetes or Istio primitive - nothing is invented for its own sake.

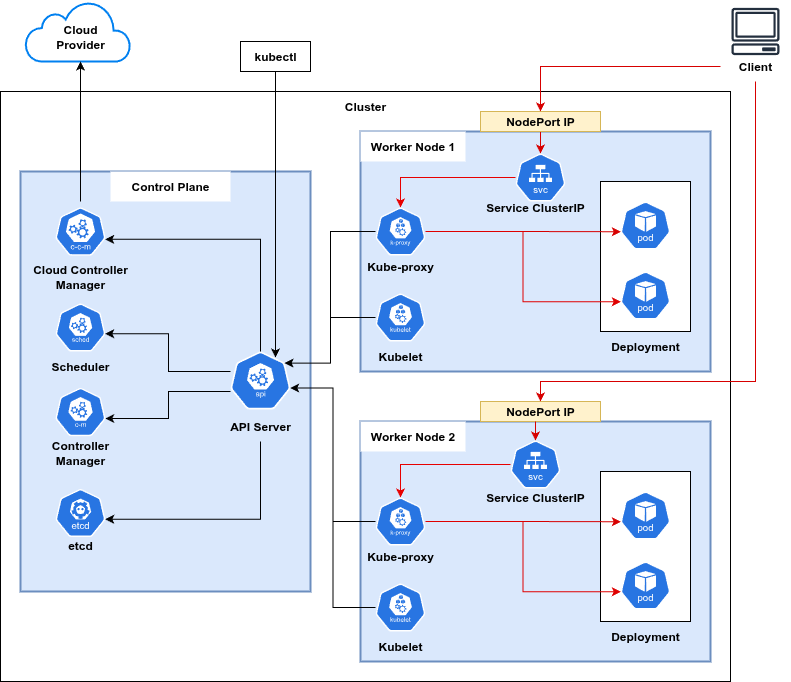

Pods, Nodes, Zones

• Pod - the smallest deployable unit; a single replica of an application.
• Node - a virtual or physical machine that hosts one or more Pods.

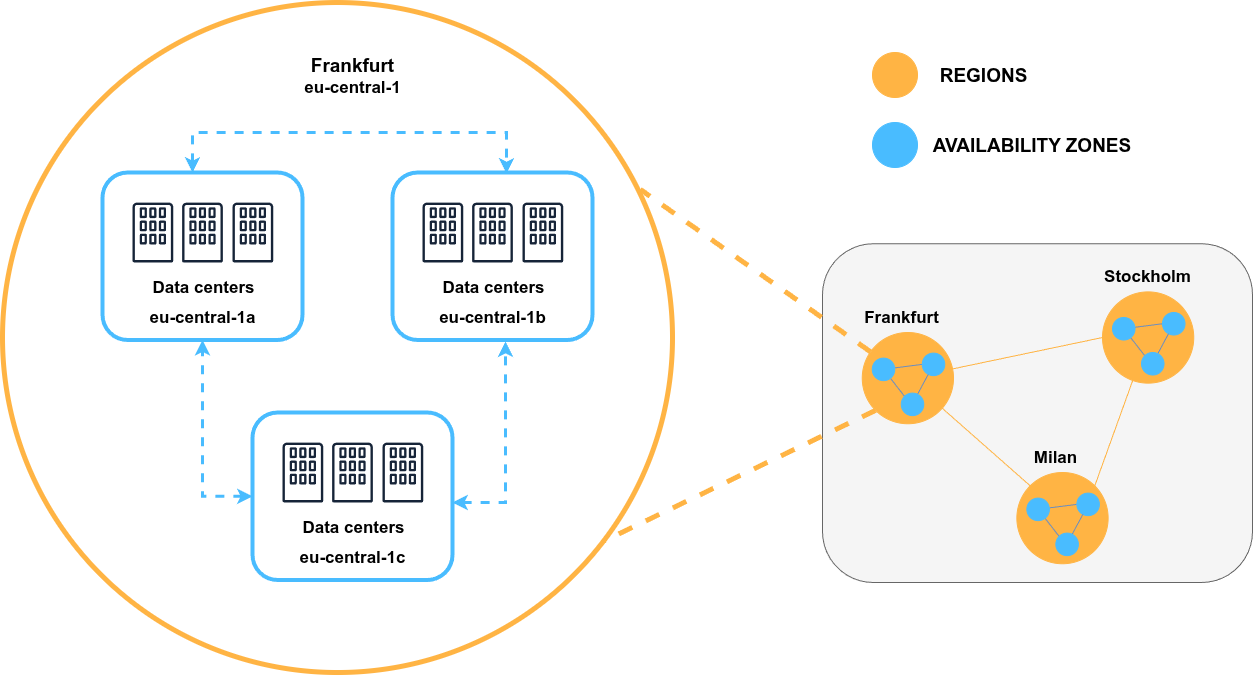

• Availability Zone (AZ) - a fault-isolated location inside a cloud region. Two nodes in the same region but different AZs are reachable, but every cross-AZ packet pays latency and (usually) a data-transfer fee.

StornX uses the standard Kubernetes well-known label topology.kubernetes.io/zone to identify a node's zone. No custom labels are required.

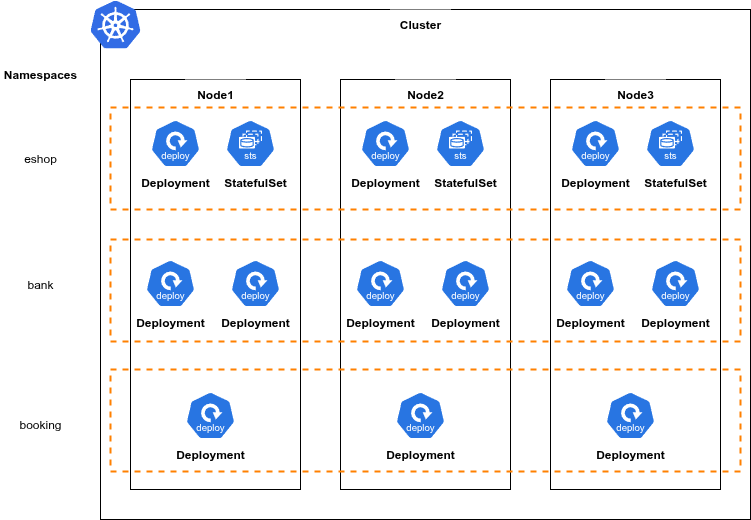

Namespaces and scope

StornX operates per namespace, on a configurable list. A typical install monitors the namespaces that contain business workloads (e.g. online-boutique, otel-demo) and ignores system namespaces (kube-system, istio-system, monitoring).

Upstream and downstream

StornX builds a service communication graph from the Istio mesh metrics exposed in Prometheus.

Term	Meaning
Upstream Pods (Um)	Pods that send requests to the Pod being placed
Downstream Pods (Dm)	Pods that receive requests from the Pod being placed

When OptiScaler needs to add a new replica, it asks: "Which zone already holds the heaviest of this Deployment's neighbours?" and prefers that zone - as long as fault tolerance is not violated.

Locality

Locality is the property of running two communicating Pods on the same node, or at least in the same zone. StornX prefers same-node locality first, then same-zone, then cross-zone - but always subject to the fault-tolerance constraint described below.

Istio expresses locality through localityLbSetting and zone-weighted DestinationRule subsets. StornX produces these weights as outputs; it does not require you to write them by hand.

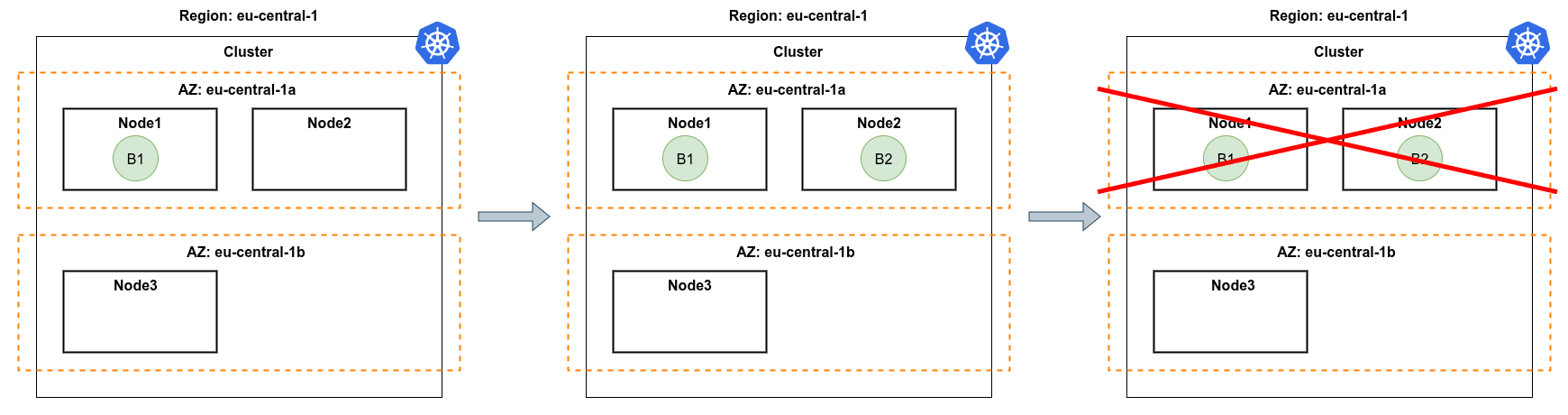

Fault tolerance vs. efficiency

These two goals are in direct tension:

• Pure efficiency = pack all replicas onto one node in one zone → lowest possible latency, zero resilience.
• Pure fault tolerance = spread replicas across as many zones as possible → maximum resilience, highest latency and cost.

StornX resolves this trade-off with a two-phase policy:

1. Spread phase - until the configured minimum number of zones is covered (FT_MAX_ZONES, default 3), every new replica goes to a fresh zone.
2. Co-locate phase - once fault tolerance is satisfied, additional replicas are placed close to their heaviest upstream or downstream neighbour.

This is the same pattern a senior SRE would apply manually - StornX just keeps it consistent across hundreds of Deployments, all the time.

Metrics, thresholds and the decision cycle

Every cycle (default: 60 s) StornX evaluates each monitored Deployment against two thresholds:

Signal	Source	Used for
CPU / memory % vs request	Prometheus + cAdvisor	Scale-up / scale-down trigger
P95 response time	Istio request_duration	Routing-weight calculation
Request rate per source→target	Istio request_total	Service-graph construction
Node-to-node latency	Kube-NetLag	Locality-aware placement

If a Deployment is above METRICS_UPPER_THRESHOLD (default 80 %) the cycle considers a scale-up; below METRICS_LOWER_THRESHOLD (default 20 %) it considers a scale-down. Between the two, the Deployment is "healthy" and only OptiBalancer may adjust its routing.

Cooldown and safety guards

StornX always errs on the side of stability:

• A cooldown prevents a deployment from being scaled more than once per N seconds (default 60 s).
• An HPA detector skips any scaling decision when a HorizontalPodAutoscaler already targets the deployment.
• A PodDisruptionBudget check refuses a scale-down that would violate minAvailable.
• A minimum delta gate prevents micro-updates to Istio DestinationRule objects.

These guards mean StornX is safe to run in production from day one - the worst case it can produce is "no decision this cycle", never a destructive one.

Zero-downtime rescheduling

When StornX needs to move a replica from one node to another, it always:

1. Creates the new replica on the target node.
2. Waits until the new Pod reaches Running and passes its readiness probe.
3. Only then deletes the old Pod.

The application never experiences a drop in replica count.

You now have the vocabulary. Continue with Architecture Overview.
